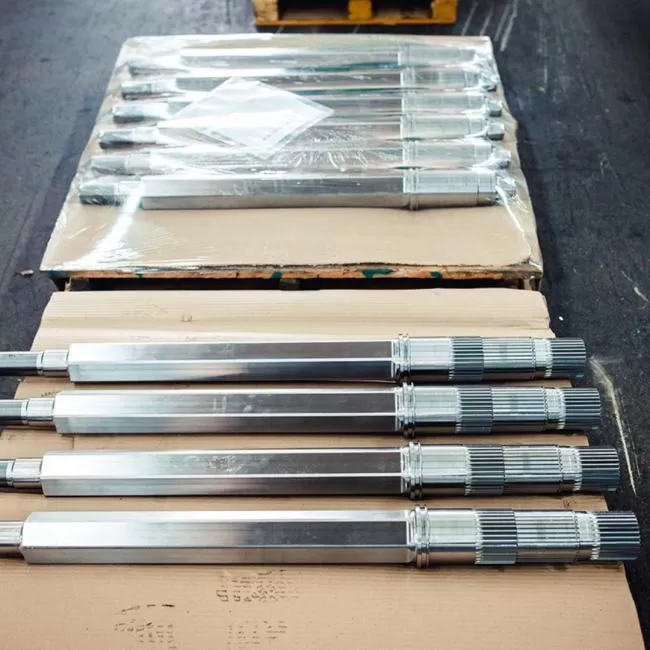

Precise spline shafts from True Gear & Spline Ltd. in Cambridge, Ontario.

The Many Benefits of Spline Shafts

When it comes to torque transmission, there is seldom a conversation without the mention of spline shafts. The sheer efficiency and reliability of spline shafts make them highly sought after. Not all shafts are created equal.

The quality and consistency depend on the manufacturer. This is where True Gear & Spline Ltd. in Cambridge, Ontario, beats the competition. Thanks to our experience in manufacturing torque transmission components, we know plenty about spline shafts.

In this blog, we summarize our years of knowledge and discuss the many benefits of splined shafts to help you make the right decision.

What Are The Different Types of Spline Shafts?

Before we discuss the benefits, let’s discuss what exactly splined shafts are and their different types. Splined shafts are cylindrical rods with teeth or grooves cut along the length. They effortlessly mesh with grooves, hubs, and gears, offering seamless torque transmission. Here is a table clearly explaining the different types of spline shafts and their applications.

Type of Splines	Key Features
Straight Splines	Parallel teeth with straight flanks. The simple design makes them easy to manufacture
Involute Splines	Teeth have an involute profile (like gears), facilitating impressive load distribution
Serrated Splines	Fine, closely spaced teeth of serrated splines offer high accuracy and prevent slippage
Helical Splines	The teeth are cut at an angle. Helical splines are apt for smoother, quieter power transmission
Internal Splines	Splines cut inside a bore (female component)
External Splines	Splines on the outer surface of a shaft (male component)

The Benefits of Spline Shafts for Torque Transmission

High-Load Capacity

The cylindrical design ensures even load distribution, minimizing the risk of premature damage. Moreover, it makes spline shafts perfect for drive trains and gearboxes that must offer consistent torque transmission under high pressure.

Minimal Backlash

Backlash, the clearance between the two mating spline teeth, is crucial to facilitate rotational movement. However, excessive backlash compromises efficiency due to vibration and inaccurate positioning. Splined shafts manufactured by trusted brands guarantee minimal backlash.

Customization

Personalized torque transmission is the key to success for industries, and splined shafts offer the perfect solution. The use of CNC technology allows gear manufacturers to customize spline shafts and ensure precise tolerance.

Conclusion

True Gear & Spline Ltd. in Cambridge, Ontario, is a one-stop destination for torque transmission components. Our design and engineering teams work together to manufacture the perfect spline shaft for your specific requirements. Call 519-653-1301 to learn about all we can do for you. True Gear & Spline Ltd. also offers gear hobbing, gear shaping, and CNC machining services to clients in Toronto and the GTA.

FAQs

What are some benefits of spline shafts?

Spline shafts offer benefits such as precise tolerance, minimal backlash, customization, durability, stability, and effective load distribution.

What are some common applications of spline shafts?

Spline shafts are commonly found in:

Drivetrains and gearboxes
Aircraft landing gear
Automation equipment
Industrial machinery
Excavators

Where can I buy the best spline shafts in Toronto, Ontario?

True Gear & Spline Ltd. manufactures and supplies the best spline shafts to clients in Toronto, GTA, and Ontario. Call 519-653-1301 to get a free quote today.
