Spline Shaft: The Ultimate Torque Transmission Tool

Spline shafts, thanks to their reliability and efficiency, are immensely popular. They are part of a wide range of mechanical components and transmission components. True Gear & Spline Ltd. in Cambridge, Ontario, manufactures custom spline shafts for a wide range of industries. Founded in 1974, we have worked with clients in the aerospace, automotive, defence, chemical, and agricultural industries, to name a few. In this blog, we highlight the factors that make the spline shaft the ultimate torque-transmission tool.

Let’s First Understand What a Spline Shaft Is

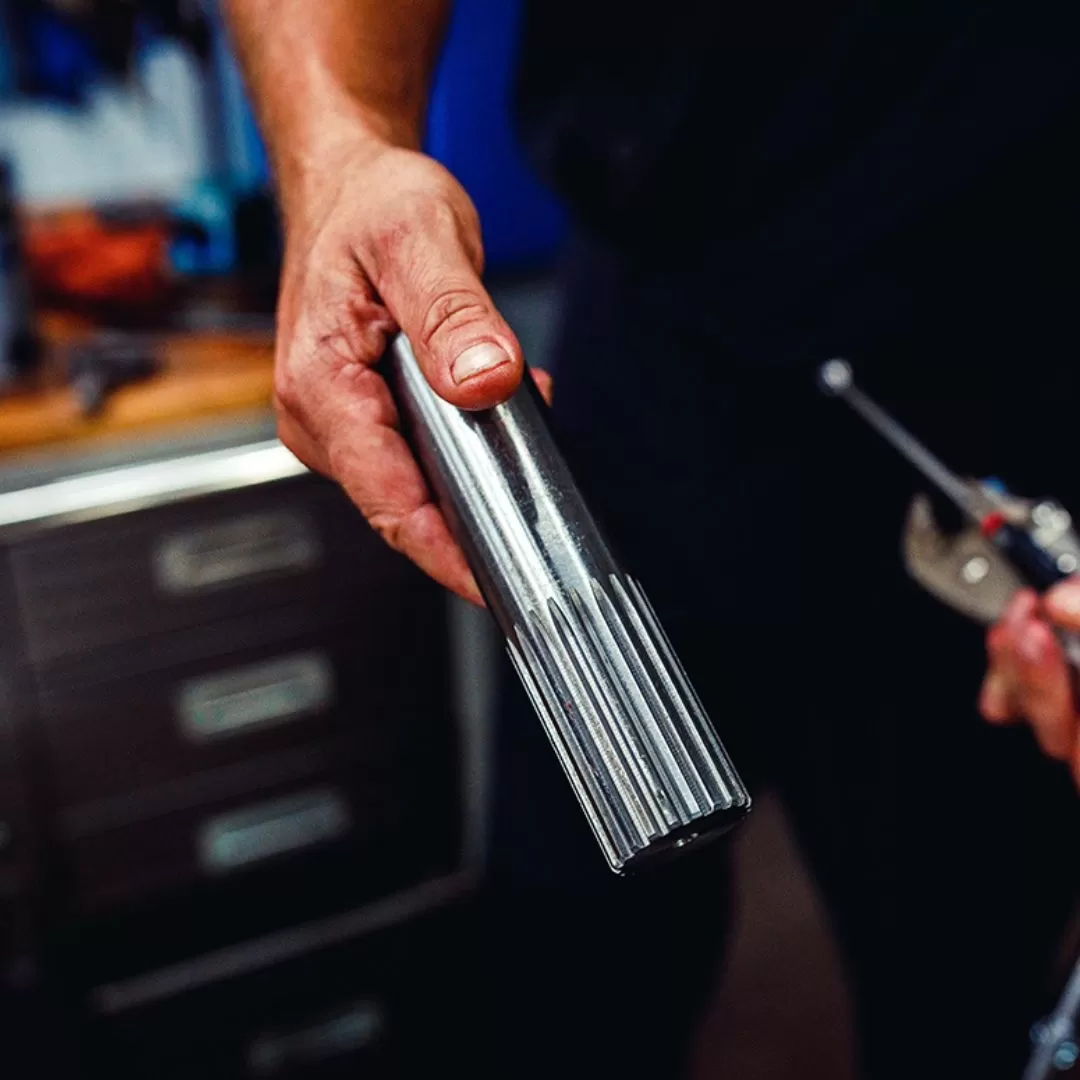

A spline shaft is designed to transfer torque between parallel or co-axial (aligned) shafts. It is cylindrical, made of tough metal/alloy, and has ridges along its length.

The longitudinal shaft and the corresponding grooves maximize surface area for contact between the shaft and the mating component. This prevents localized stress concentration and resultant premature damage. In the case of a spline shaft, the mating component is an internally splined gear, hub, bushing, or coupling.

Benefits of Spline Shafts

Precision

One of the best benefits of spline shafts is their ability to guarantee precise torque transfer. When sourced from a trusted manufacturer, spline shafts have almost no backlash. This becomes an indispensable quality for industries with minimal scope for error.

Higher Torque Capacity

Spline shafts thrive where gears cannot. They are designed to handle higher torque loads without buckling under pressure or compromising torque transfer.

Versatility

Involute, parallel key, serrated,  helical, crowned, and ball are different types of splines. Each of them has unique features and strengths. This means that, no matter the intended application, you will find an appropriate spline. The versatility is unmatched.

Conclusion

Get in touch with us at True Gear & Spline Ltd. today for the best custom spline shafts. We use CNC machining to ensure precise tolerance and design accuracy. We also manufacture spur gears and bevel gears and offer CNC gear-shaping services. Call 519-653-1301 to get a free quote today.

FAQs

What is a spline shaft?

A spline shaft is designed to transfer torque between parallel or co-axial (aligned) shafts. It is cylindrical, made of tough metal/alloy, and has ridges along its length.

What are some benefits of spline shafts?

Precise tolerance, minimal backlash, higher torque load, and versatility are some benefits of spline shafts.

Who manufactures the best spline shafts in Toronto?

True Gear & Spline Ltd. in Cambridge, Ontario, manufactures the best spline shafts in Toronto and the GTA. Call 519-653-1301 to place an order today.
